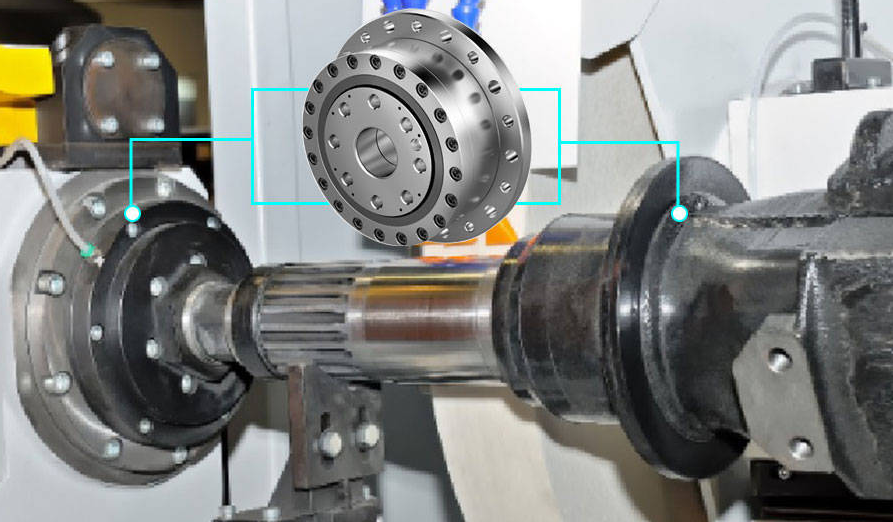

A motor reducer, also known as a gearbox, is a mechanical transmission device connecting a motor to a driven load. It consists of a series of gears and is used to modify the torque and speed between a motor and a load. Knowing the torque and rotation speed is essential. A reducer increases motor torque and allows a receiving member to rotate
Product Introduction:
A motor reducer, also known as a gearbox, is a mechanical transmission device connecting a motor to a driven load. It consists of a series of gears and is used to modify the torque and speed between a motor and a load. Knowing the torque and rotation speed is essential. A reducer increases motor torque and allows a receiving member to rotate. Manufacturers indicate the minimum and maximum torque (in N.m) that their products can support. Planetary gearboxes have high torque density. A motor reducer also reduces motor speed. Consider the ideal reduction ratio for your use. Based on motor speed, the reduction ratio determines output rotational speed (in revolutions per minute). Lastly, determine the most appropriate gear reducer assembly (coaxial, parallel-shaft, or orthogonal input/output shafts) based on your application.

Product Application Cases:

Warehousing and logistics:

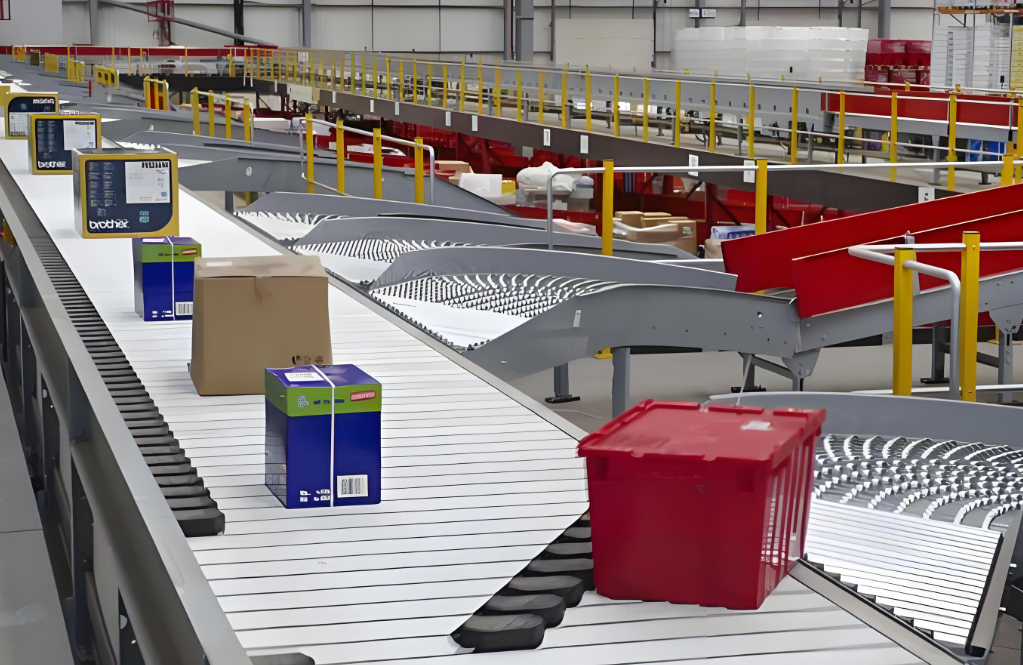

Equipment such as stackers and conveyors in automated warehousing systems also need motor reducers to achieve efficient cargo handling and storage.

Automated production lines:

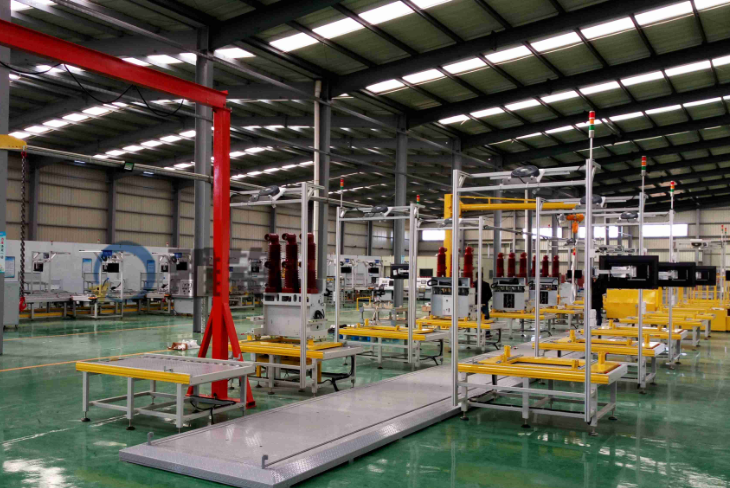

On various automated production lines, motor reducers are used to drive conveyor belts, elevators, sorting equipment, etc. For example, in food processing production lines, reducers ensure that the conveyor belt runs at a stable speed and accurately transports food for processing and packaging.

Machine tool equipment:
The spindle drive and feed system of machine tools such as numerical control machines, milling machines, and drilling machines usually require motor reducers to achieve precise speed control and high torque output. It can ensure that the machine tool has stable cutting force and processing accuracy when processing different materials and workpieces.





Specification Number of stages Reduction ratio AB042 AB060 AB000 AB115 AB142 AB180 AB220
Nominal output torque 1 3   55 135 220 450 1186 2308
  4 23 65 165 345 700 1548 2167
  5 21 60 160 335 650 1431 2347
  6 20 52 145 300 610 1376 206
  7   50 135 290 540 1151 1771
  8 18 45 115 265 510 1000 1600
  9 14 42 105 255 455 910 1500
  2 10 14 42 105 255 455 910 1500
  12 23 65 165 345 700 158 2563
  15 21 60 160 335 650 1431 2347
  25 21 60 165/160 345/335 700/650 1568/1431 2567/2347
  28 23 65 165 345 700 1508 2567
  30     335     2347
    21 60 160 650 1431
  35/40 21 60 160/160 335/335 650/650 1431/1431 2347/2347
  45/50 21 60 160/160 335/335 650/650 1431/1431 2347/2347
  60 20 52 145 300 610 1376 2068
  70/80 18 50/45 135/115 290/265 540/510 1151/1000 1771/1600
  90 14 42 105 255 455 910 1500
  ≥3 ≥100 For detailed parameters of gear reducers with three-stage reduction and above, please consult the factory service. Specific parameters are subject to the outline drawings.
Maximum acceleration torque T2 Nm 142 1.8*T (1.8 times rated torque)
Sudden stop torque T2 Nm 142 3*(3 times rated torque)
Nominal input speed r 142 3000 3000 3000 3000 2000 1500 1000
Maximum input speed T 142 6000 6000 6000 6000 4000 3000 2000
Precision backlash       3 3 3 3 5 S
P1 1 3
-arcmin 2 5 5 5 5 5 7 7
P2 -arcmin 1 S 5 5 5 5 7 7
  2 7 7 7 7 9 9
Noise d(A) 142 58 60 60 63 65 67 70
Maximum radial load capacity N 142 770 1500 3200 6700 9600 14000 16000
Maximum axial load capacity N 142 380 760 1600 3300 4800 7000 8000
Efficiency % 1 ≥97%
  2 >9
Operating temperature ℃ 142 -15 - +40°C
Service life h 142 ≥20000
Lubrication   142 Synthetic grease (lifelong maintenance-free)
