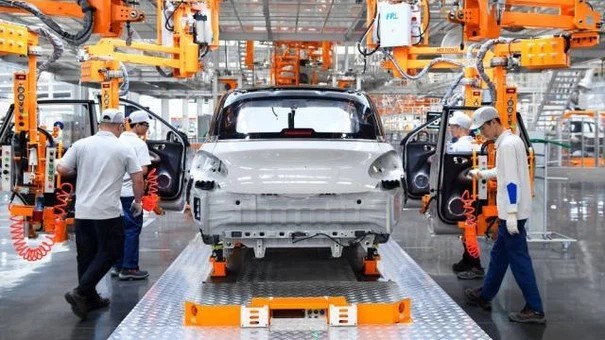

In automotive production and AGV parking applications, differential wheel AGVs offer precise positioning and flexible movement. Though steering wheels are becoming common in complex tasks, differential wheels remain cost-effective for simpler, lower-precision needs—e.g., an 85 mm wheel unit can carry over 800 kg.
AGV differential wheel unit
We supply dual differential drive wheels, which are ideal for use in tight spaces and demanding industrial environments. As one of China's leading suppliers of core components for mobile robots, we have over 22 years of experience in production and development, providing reliable and customized solutions.
Key words: Mobile robot | AGV vehicle system | magnetic navigation system
Previous Page
Next Page
Functional
Parameter
Drawing
Annex
Introduction:

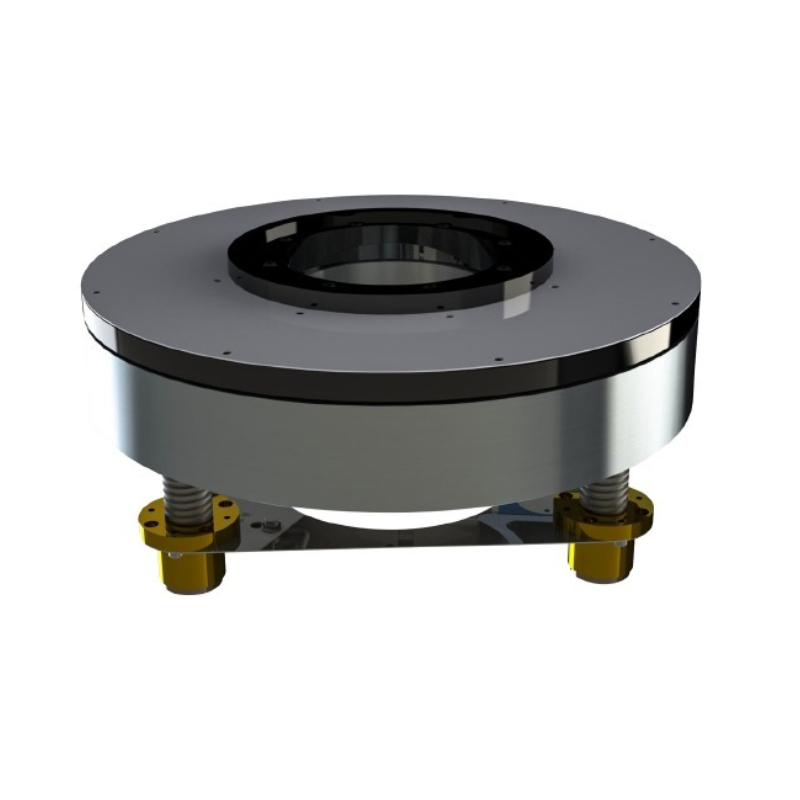

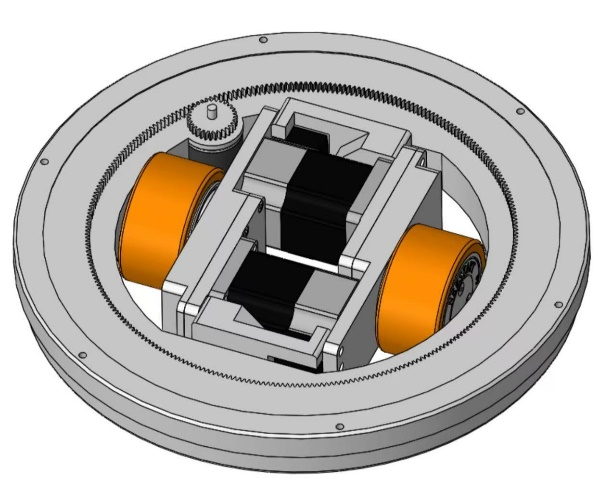

Our AGV differential wheel unit adopts an integrated advanced design to achieve flexible steering and precise control, which is very suitable for complex industrial environments.
1. The wheel diameter size range covers: 85mm, 120, 150, 180, 220, 250, 270, 300mm series, and the differential wheel can carry up to 5 tons.
2. Equipped with permanent magnet servo motor, 24V, 48V, 72V, 80V, 96V are available. The motor is equipped with incremental or absolute encoder.
3. Different reduction ratios can be selected, and the speed of the differential wheel unit can reach up to 3m/s.
4. Equipped with servo drives developed by Jiangsu Yikong, PSL, PSM, PSH and other models.
5. Shock-absorbing springs are optional to ensure better operability and stability when running on slopes.
Applications：
Semiconductor environments benefit from differential wheel AGVs for their maneuverability and positioning accuracy, with a 15% cost advantage over steering wheels while maintaining similar load capacity and simpler system complexity.
For loads above 5 tons, differential wheel modules offer high safety, compact turning, and precise motion control. They support omnidirectional movement and accurate lifting, making them ideal for space-constrained, heavy-load transport scenarios.

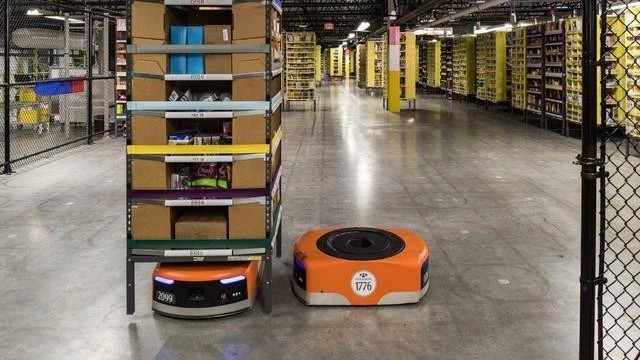

Differential wheel AGVs are widely used in e-commerce and retail warehousing due to their suitability for high-density storage and fast picking environments. For example, Amazon’s KIVA robots operate at speeds over 1.5–2 m/s, offering efficiency in clean, structured settings.
Parameter Category (Unit) | PLT-85-DD | PLT-110-DD | PLT-120-DD | PLT-150-DD |
Rated Power (W) | 400 | 600 | 1000 | 1000 |
Rated Voltage (V (DC)) | 48 | 48 | 48 | 48 |
Rated Current (A) | 11.5 | 16.5 | 25 | 25 |
Rated Rotational Speed (rpm) | 3000 | 3000 | 3000 | 3000 |
Rated Torque (N・m) | 1.28 | 1.91 | 3.18 | 3.2 |
IP Protection Grade (-) | IP54 | IP65 | IP54 | IP54 |
Gear Ratio (I) | 19 (Walking Reduction Ratio) | 27 | 27 (Gearbox) | 27 (Gearbox) |
Rated Output Torque (N・m) | 21 (Single Wheel) | 50 | 70 | 50 |
Maximum Output Torque (N・m) | 60 (Single Wheel) | 90 | 126 (Maximum Acceleration/Braking Torque) | 90 (Maximum Acceleration Torque) |
Maximum Radial Load (Kg) | 1200 | 1200 | 6500 | 6500 |
Maximum Axial Load (Kg) | - | 1000 | 1000 | |
Lubrication (-) | Grease | Grease | Grease | Grease |
Six Quality Assurance
Professional Technical Team
skilled technicians
Advanced production equipment
Experienced production personnel
Strict testing procedures
Factory strength
FAQ
What applications are dual differential drive wheel sets suitable for?
Dual differential drive wheel sets are widely used in heavy-duty transport equipment, large industrial robots, and high-precision cargo transport where strong driving power and high stability are required.
How do I choose the right dual differential drive wheel set?
When choosing a dual differential drive wheel set, you should consider the load requirements, the specific application environment, and operational conditions. We recommend consulting our technical support for customized advice.
What are the main advantages of dual differential drive wheel sets?
Dual differential drive wheel sets offer higher load capacity and stability, making them ideal for extended operations in large equipment. They ensure smooth operation under heavy loads or on challenging terrain while also improving overall maneuverability.
