High-quality damping springs, durable even in rigidity
Horizontal Drive Wheel with Spring Dampling
We supply horizontal drive wheels with spring damping, which are ideal for use in demanding industrial environments. As one of China's largest suppliers of core components for mobile robots, we have over 22 years of experience in production and development, offering reliable and customized solutions
Key words: Mobile robot | AGV vehicle system | magnetic navigation system
Previous Page
Next Page
Functional
Parameter
Drawing
Annex
Introduction:

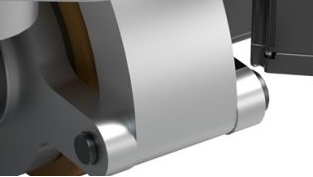

The Horizontal Drive Wheel with Spring Damping integrates a spring damping system into the horizontal drive wheel design, enhancing load capacity and operational stability. This system effectively absorbs vibrations, reduces operational impacts, protects mechanical components, and extends equipment service life.
The Horizontal Drive Wheel with Spring Damping integrates a spring damping system into the horizontal drive wheel design, enhancing load capacity and operational stability. This system effectively absorbs vibrations, reduces operational impacts, protects mechanical components, and extends equipment service life.
1.Optional parallel shaft gears and planetary reducers, featuring a compact structure, low noise, and high output torque.
2.Horizontal drive wheel series (named by wheel diameter in mm): covering the full range of applications with diameters of 150, 167, 198, 220, and 250.
3.Horizontal drive wheel load capacity: 500kg to 1600kg across various series.
4.Input voltage range: 12V-96V; available in both steering and non-steering versions.
5.Optional wheel materials: polyurethane or rubber.
6.Optional motors: DC brushed, AC asynchronous, or permanent magnet servo motors, with a power range of 400W to 15KW.
7.Optional components: damping springs, limit switches, preset switches, incremental/absolute encoders, potentiometers, and other parts.
Three Key Product Advantages：
Limit switch, ensuring safe operation.
High-strength alloy material, enhanced load-bearing capacity.
| Series | Motor Type | Power (W) | Voltage (V) | Current (A) | Speed (RPM) | Gear Ratio (I) | Load (Kg) | IP Rating |
TEC-150P | Travel Motor | Servo | 750 | 48 | 18 | 3000 | 21 | 500 | 65 |
Steering Motor | Servo | 200 | 48 | 6 | 3000 | 50 |
| 65 | |
TEC-167P | Travel Motor | Servo | 1000 | 48 | 27 | 3000 | 32 | 600 | 65 |
Steering Motor | Servo | 200 | 48 | 6.4 | 3000 | 285 |
| 65 | |
TEC-198P | Travel Motor | Servo/AC/DC | 1500 | 48 | 40 | 3000 | 32 | 1000 | 20-65 |
Steering Motor | Servo/AC/DC | 400 | 48 | 9.9 | 3000 | 50 |
| 20-65 | |
TEC-220P | Travel Motor | Servo | 1500 | 48 | 27 | 3000 | 40 | 1000 | 65 |
Steering Motor | Servo | 400 | 48 | 11.5 | 3000 | 200 |
| 65 | |
TEC-250P | Travel Motor | Servo/AC/DC | 1500 | 48 | 35 | 3000 | 40 | 1600 | 20-65 |
Steering Moto | Servo/AC/DC | 400 | 48 | 9.9 | 3000 | 50 |
| 20-65 |
Six Quality Assurance
Professional Technical Team
skilled technicians
Advanced production equipment
Experienced production personnel
Strict testing procedures
Factory strength
FAQ
How does the spring damping system of the horizontal drive wheel work?
The spring damping system utilizes specific materials and structural design to effectively absorb vibrations and impacts from the ground, ensuring the safety of goods during transportation.
What is the load capacity of this drive wheel?
The load capacity varies depending on the specific model. Please consult our technical support for detailed information.
What are the maintenance requirements for the horizontal drive wheel with spring damping?
Regularly check the integrity of the wheels and the spring damping system, keep them clean, and ensure proper lubrication to maintain optimal performance.
