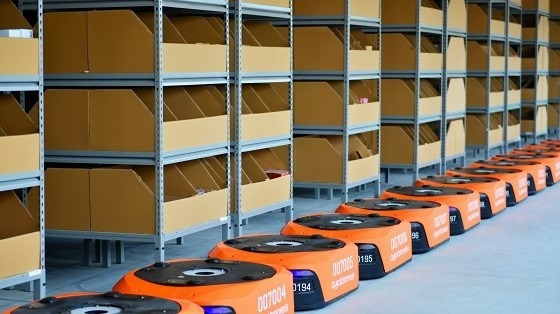

Logistics and Warehousing:
Enhancing the maneuverability of automated guided vehicles (AGVs) in tight aisles.
Differential Drive Wheel
We supply differential drive wheels with high mobility, which are particularly suitable for use in confined spaces and demanding industrial environments. We are one of the largest suppliers of core components for mobile robots in China, with over 22 years of production and R&D experience, providing reliable customized solutions.
Key words: Mobile robot | AGV vehicle system | magnetic navigation system
Previous Page
Next Page
Functional
Parameter
Drawing
Annex
Introduction:
Our Differential Drive Wheel adopts an advanced design, achieving flexible steering and precise control, making it highly suitable for complex industrial environments. The drive wheel effectively enhances maneuverability through its differential mechanism, enabling efficient operation in confined spaces.
Planetary gearbox transmission structure with a compact design, low noise, and high output torque.
1.Differential Drive Wheel series (named by wheel diameter in mm): 120, 150, 180, 200, 220, 240, 250 series for diverse applications.
2.Load capacity of Differential Drive Wheels ranges from 150 kg to 2500 kg for various series.
3.Input voltage range: 12V-96V.
4.Optional wheel materials: polyurethane or rubber.
5.Optional motors: brushed DC, asynchronous AC, permanent magnet servo motors with power range from 100W to 3KW.
6.Optional components: shock-absorbing springs, incremental/absolute encoders, brakes, etc.
7.Customizable series: explosion-proof motors, low-temperature motors, high IP protection rating.
Applications:

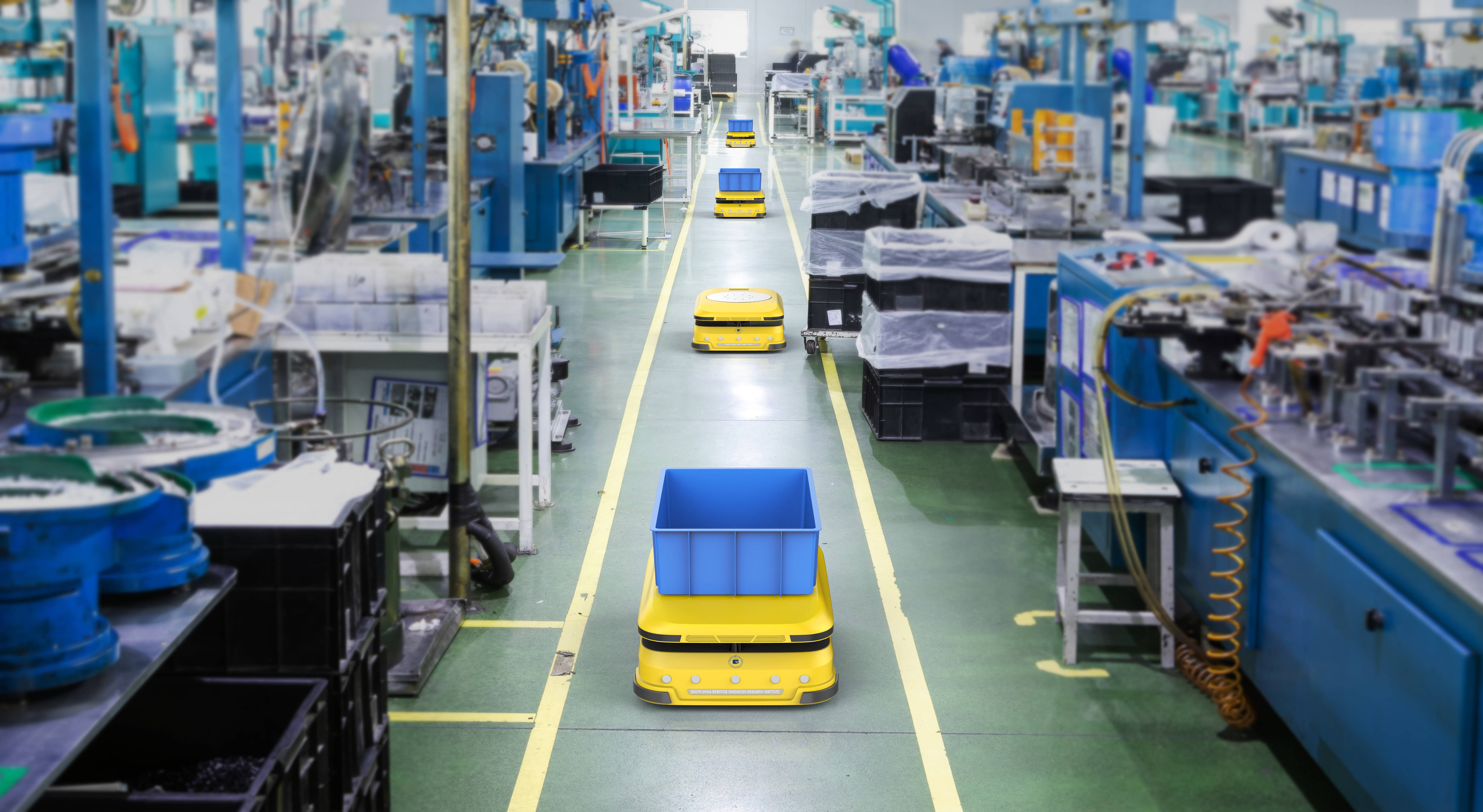

Manufacturing:
Supporting industrial robots that require precise movement in complex assembly lines.

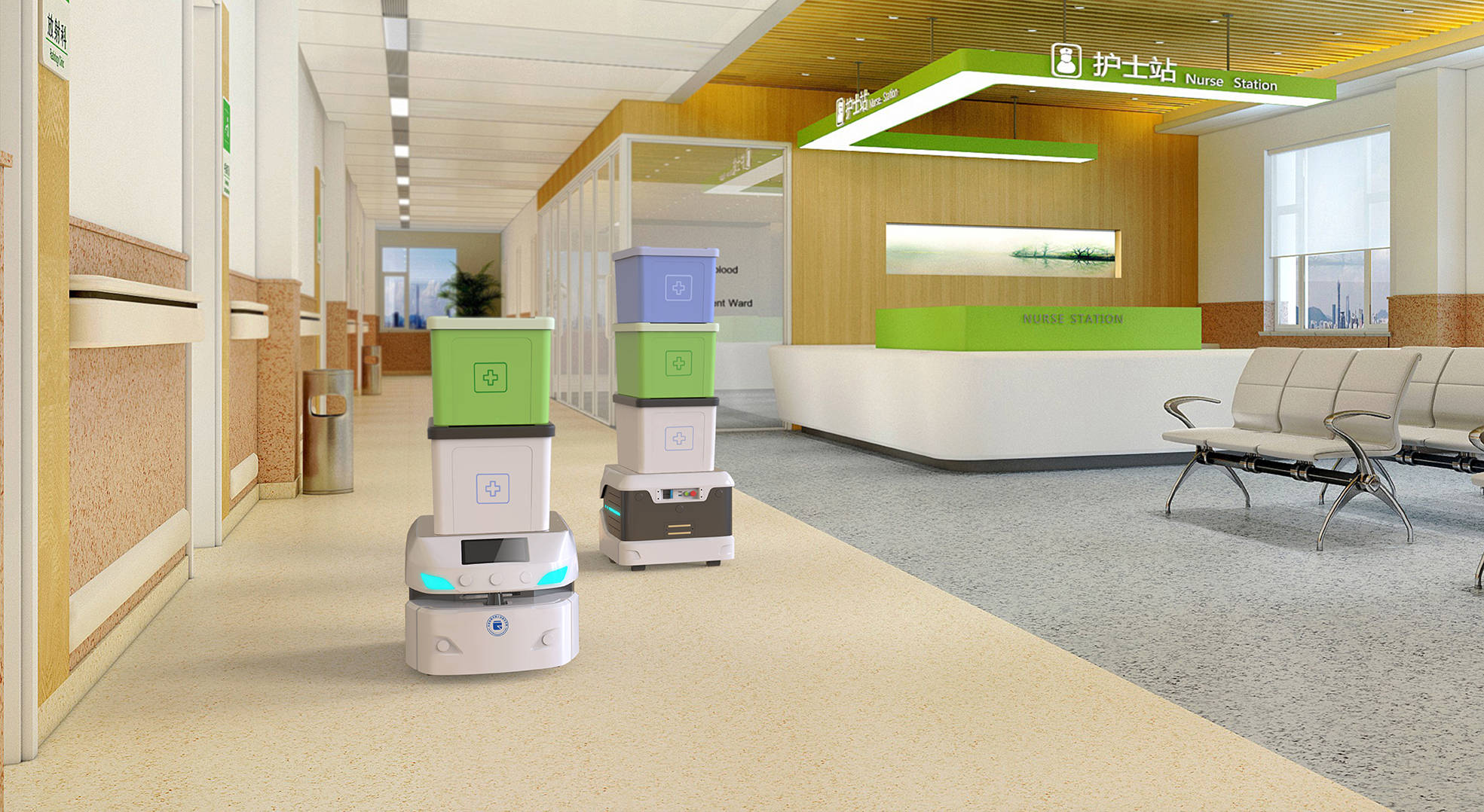

Healthcare:
Facilitating the movement of medical equipment within confined spaces in hospitals.
| Product Model | Rated Power (W) | Rated Voltage (V) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (Nm) | IP Protection Level | Drive Wheel Load (kg) | Total Weight of Drive Wheel (kg) | Transmission Ratio（I） | Rated Output Torque (Nm) | Maximum Acceleration and Braking Torque (Nm) |
| TEC-120 | 400 | 48 | 11.2 | 3000 | 1.28 | IP65 | 150 | 5±2 | 9，20 | 10，21 | 20，42 |
| TEC-150 | 400 | 24 | 22 | 3000 | 1.28 | IP54 | 450 | 12±2 | 15 | 16 | 40 |
| TEC-180 | 750 | 48 | 19.6 | 3000 | 2.39 | IP65 | 600 | 18±2 | 15 | 30 | 80 |
| TEC-200 | 750 | 48 | 19.6 | 3000 | 2.39 | IP65 | 600 | 18±2 | 15 | 30 | 80 |
| TEC-220 | 1500 | 48 | 45 | 3000 | 4.78 | IP65 | 1400 | 37±5 | 15，30 | 61, 121 | 122, 242 |
| TEC-240 | 1500 | 48 | 45 | 3000 | 4.78 | IP65 | 1400 | 38±5 | 15，30 | 60, 121 | 122, 242 |
| TEC-250 | 1500 | 48 | 45 | 3000 | 4.78 | IP65 | 1400 | 37±5 | 15, 30 | 60, 121 | 122, 242 |
Pdf Download
-
File size: 259.0KB
-
File size: 199.3KB
-
File size: 204.3KB
-
File size: 205.0KB
-
File size: 250.8KB
-
File size: 253.2KB
-
File size: 253.6KB
Six Quality Assurance
Professional Technical Team
skilled technicians
Advanced production equipment
Experienced production personnel
Strict testing procedures
Factory strength
FAQ
What applications are suitable for the differential drive wheel?
Differential drive wheels are widely used in automated guided vehicles (AGVs), logistics equipment, and industrial robots, where high mobility and flexible steering are required.
How do I choose the right model of differential drive wheel?
When selecting a differential drive wheel, consider the load capacity, steering precision, and environmental conditions. It is recommended to consult our technical support for professional advice.
What are the main advantages of the differential drive wheel?
The differential drive wheel allows for flexible steering in confined spaces, enhances the maneuverability of the equipment, and ensures stability under heavy loads, making it suitable for complex industrial environments.
