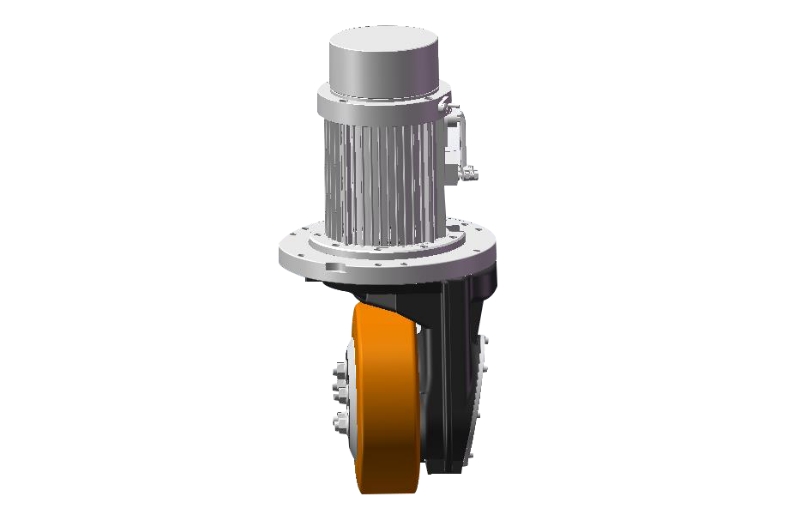

TEC-230

TEC-230

High strength, wear resistance, good stability
  • The wheel diameter230mm
  • BrandTEC
  • model
  • Place of OriginChina
  • Power range1.5KW

Detailed product parameters

TEC Motor Drive Wheel Unit Series including  highly integrated product with electromagnetically integration including drive mechanism, position feedback, limit device and braking mechanism. It integrates walking, deceleration, traction and other functions, with high strength, abrasion resistance and good stability, which is very suitable for AGV application.

Product Features:

1. Compact space: Integrated design, small space

2. Various forms: horizontal/vertical/with steering/without steering

3. Various types of motor: DC brush/AC asynchronous/synchronous motor/servo motor

4. The wheels are optional with hard polyurethane (92HS), soft polyurethane (72HS) and rubber wheels

5. Different limit angles can be customized

6. Optional limit switch, different increment/absolute value encoder, origin switch, etc

7. Reducer: parallel axis/planetary axis

8. Vertical part models with shock absorption device

TEC-230 Traction motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-230  ​Rated voltage​AC16V
Traction power​1500WRated current​​76A
Rated speed2590RpmRated torque​​5.5Nm
Reduction ratio21.5Output torque100Nm
Peak torque300Nm​Maximum load1800Kg
TEC-230 Traction motor parameters

TEC-230 Steering motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-230  ​Rated voltage​DC24V
Steering power​400WRated current​​24A
Rated speed3000RpmRated torque1.27Nm
Reduction ratio44.69Output torque48.2Nm
TEC-230 Steering motor parameters
