Permanent Magnet Synchronous Motor Controller

The TEC driver/controller utilizes the latest aluminum PCB thermal conductivity technology, providing high thermal efficiency and supporting extended operation with large current lock-in. It features an international brand high-power MOSFET as the power device, ensuring efficient energy conversion with superior safety and stability. The system is built around a cutting-edge DSP core, optimizing a digital drive platform for asynchronous AC motor control.

Product Features

1. It can run in the environment of -20 ° C to +55 ° C

2. High current and high power driving ability

3. Supports 0 to 10V+ terminal reversal signal control and positive and negative direction control with 0 to 10V+100 to 900mV as the midpoint

4. Support speed closed loop, torque mode, open loop mode drive mode

5.CAN bus technology, CAN standard bus control mode based on SAEJ1939

6. Support over voltage, under voltage, over current, short circuit, over temperature, stall and other protection

Brushed DC Motor Controller

Motor Type	Product Model	Voltage	Peak current	Rated current

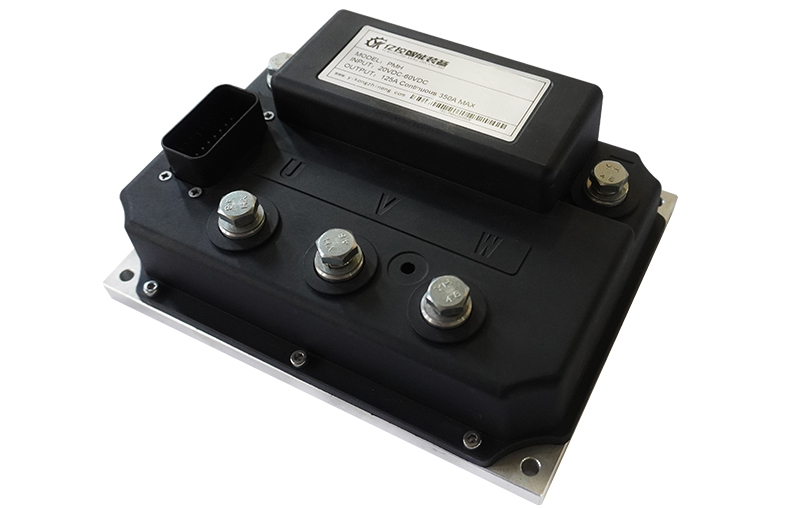

Permanent Magnet Synchronous	PMH	24/60V	350A	125A

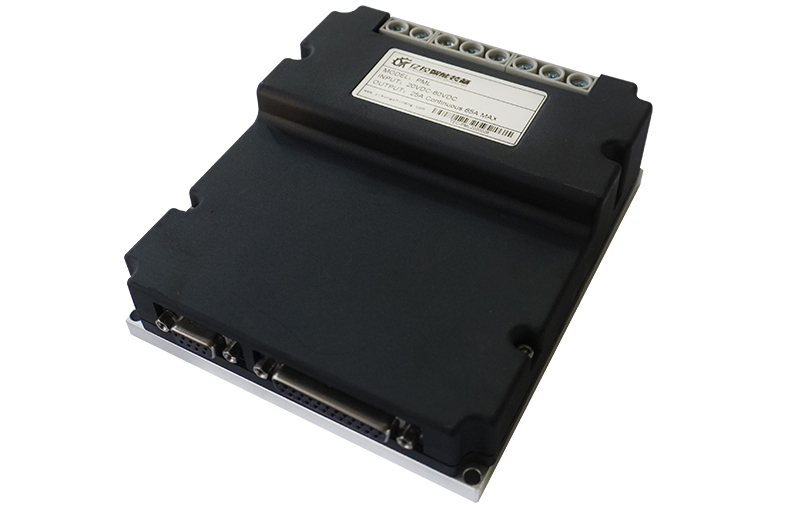

Permanent Magnet Synchronous	PML	24/60V	65A	25A
