AC Induction Motor Controller

TEC driver/Controller adopts the latest aluminum PCB thermal conductivity technology, high thermal conductivity efficiency, support for long time and large current lock-in. With the international brand high power MOSFET tube as the power device, to achieve efficient energy conversion, very safe and stable, and the collection of mainstream DSP as the core control system, optimized digital drive asynchronous AC motor drive platform.

Product Features

1. It can run in the environment of -20 ° C to +55 ° C

2. High current and high power driving ability

3. Supports 0 to 10V+ terminal reversal signal control and positive and negative direction control with 0 to 10V+100 to 900mV as the midpoint

4. Support speed closed loop, torque mode, open loop mode drive mode

5.CAN bus technology, CAN standard bus control mode based on SAEJ1939

6. Support over voltage, under voltage, over current, short circuit, over temperature, stall and other protection

Brushed DC Motor Controller

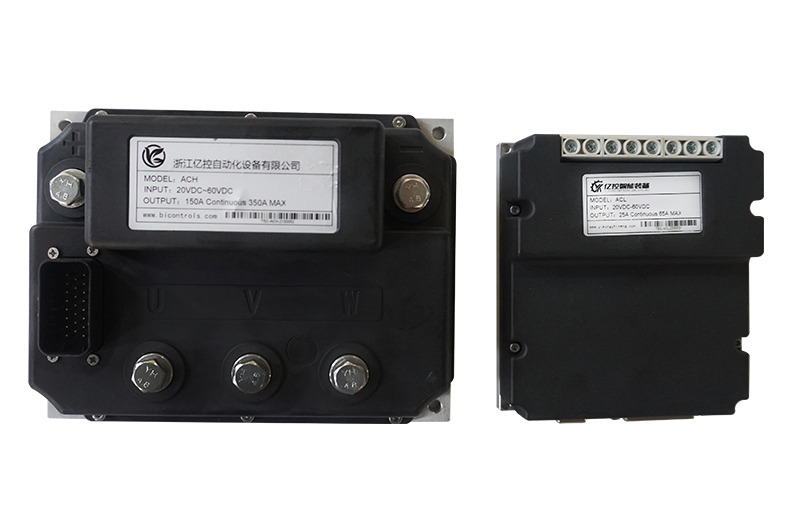

Motor Type	Product Model	Working Voltage	Peak current	Rated current

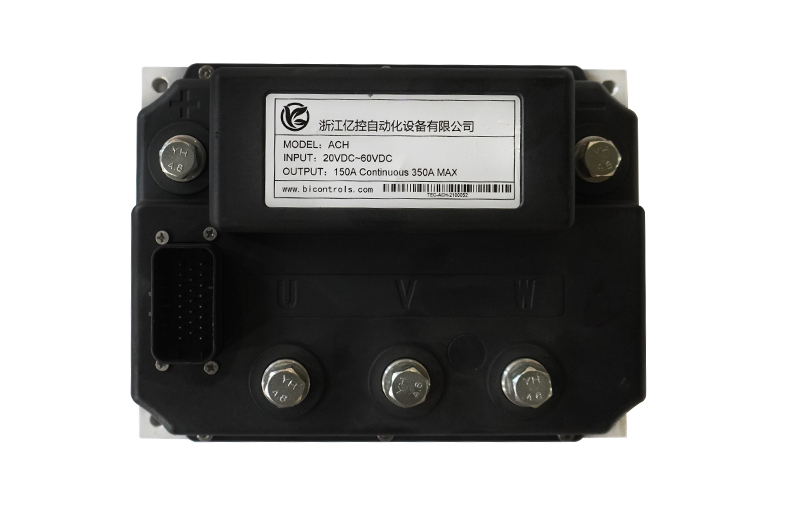

AC Induction	ACH	24/60V	350A	125A

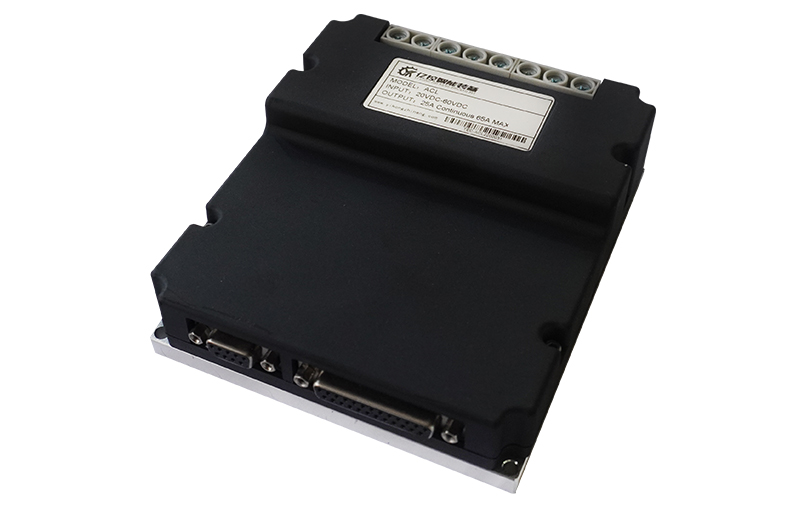

AC Induction	ACL	24/60V	65A	25A
