TEC-410
TEC-410
TEC-410

TEC-410

High strength, wear resistance, good stability
  • The wheel diameter410mm
  • BrandTEC
  • model
  • Place of OriginChina
  • Power range5.8KW~7.5KW

Detailed product parameters

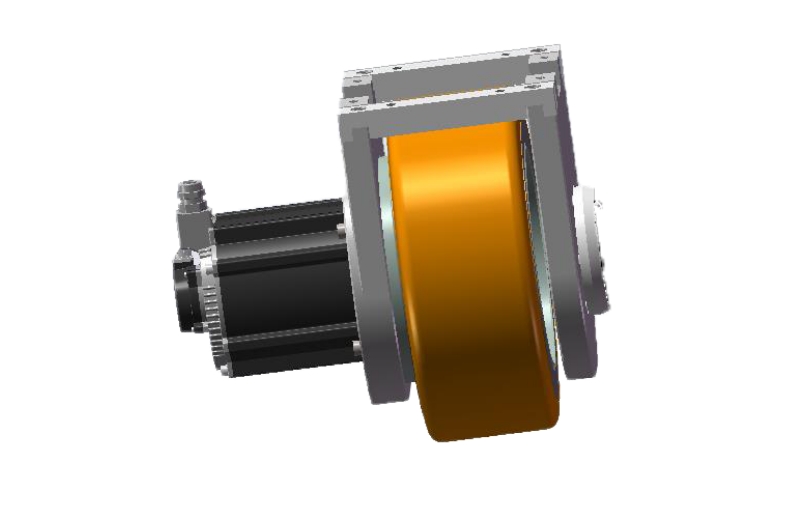

TEC Motor Drive Wheel Unit Series including  highly integrated product with electromagnetically integration including drive mechanism, position feedback, limit device and braking mechanism. It integrates walking, deceleration, traction and other functions, with high strength, abrasion resistance and good stability, which is very suitable for AGV application.

Product Features:

1. Compact space: Integrated design, small space

2. Various forms: horizontal/vertical/with steering/without steering

3. Various types of motor: DC brush/AC asynchronous/synchronous motor/servo motor

4. The wheels are optional with hard polyurethane (92HS), soft polyurethane (72HS) and rubber wheels

5. Different limit angles can be customized

6. Optional limit switch, different increment/absolute value encoder, origin switch, etc

7. Reducer: parallel axis/planetary axis

8. Vertical part models with shock absorption device

TEC-410 Traction motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-410  ​Rated voltage48V
Traction power5800/7500WRated current125/208A
Rated speed2000RpmRated torque27/35Nm
Reduction ratio70Output torque1610/2080Nm
Peak torque3060Nm​Maximum load6000Kg
TEC-410 Traction motor parameters

TEC-410 Steering motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-410  ​Rated voltage​48V
Steering power​750WRated current19A
Rated speed3000RpmRated torque2.4Nm
Reduction ratio64Output torque135Nm
TEC-410 Steering motor parameters
