TEC-220
TEC-220
TEC-220

TEC-220

High strength, wear resistance, good stability
  • The wheel diameter220mm
  • BrandTEC
  • model
  • Place of OriginChina
  • Power range0.5KW~0.75KW

Detailed product parameters

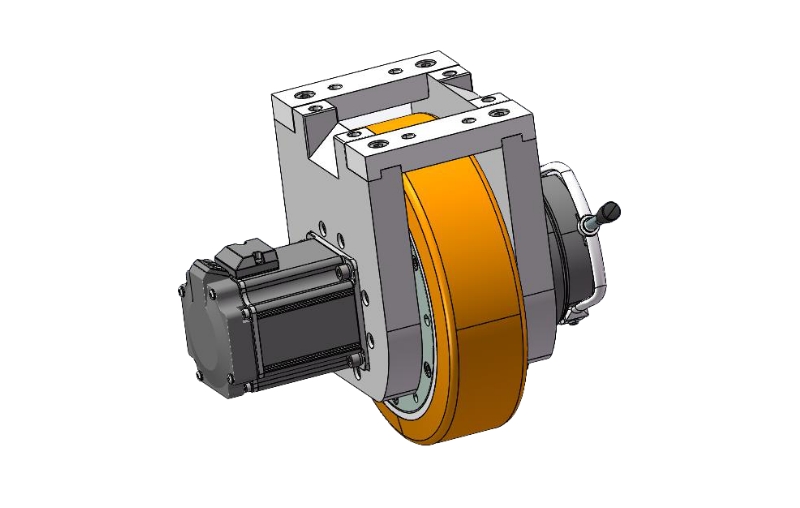

TEC Motor Drive Wheel Unit Series including  highly integrated product with electromagnetically integration including drive mechanism, position feedback, limit device and braking mechanism. It integrates walking, deceleration, traction and other functions, with high strength, abrasion resistance and good stability, which is very suitable for AGV application.

Product Features:

1. Compact space: Integrated design, small space

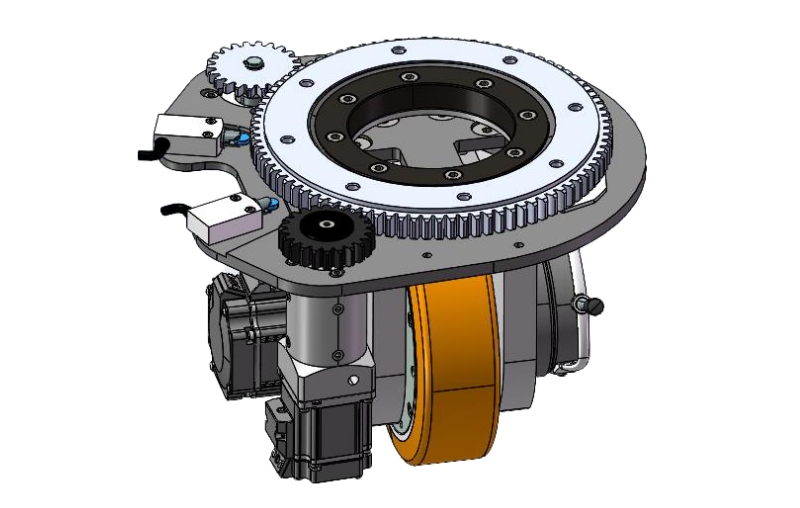

2. Various forms: horizontal/vertical/with steering/without steering

3. Various types of motor: DC brush/AC asynchronous/synchronous motor/servo motor

4. The wheels are optional with hard polyurethane (92HS), soft polyurethane (72HS) and rubber wheels

5. Different limit angles can be customized

6. Optional limit switch, different increment/absolute value encoder, origin switch, etc

7. Reducer: parallel axis/planetary axis

8. Vertical part models with shock absorption device

TEC-220 Traction motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-220  ​Rated voltage24/48V
Traction power500/750WRated current18/25/37.5A
Rated speed2800/3000RpmRated torque1.7/2.4/2.56Nm
Reduction ratio28/33.03/40Output torque45/60/70/85Nm
Peak torque200/230/460Nm​Maximum load700/1000Kg
TEC-220 Traction motor parameters

TEC-220 Steering motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-220  ​Rated voltage​24/48V
Steering power​200WRated current8.3/10/11A
Rated speed3000RpmRated torque0.64Nm
Reduction ratio50Output torque28/28.8Nm
TEC-220 Steering motor parameters
