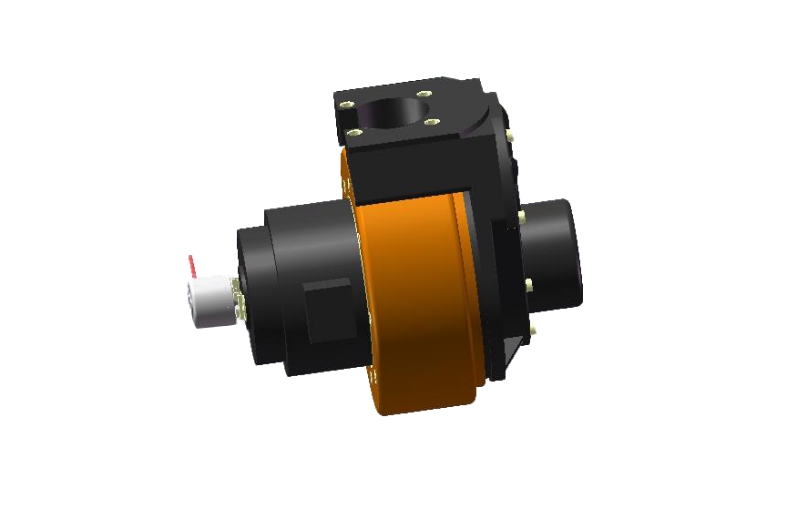

TEC-210
TEC-210
TEC-210

TEC-210

High strength, wear resistance, good stability
  • The wheel diameter210mm
  • BrandTEC
  • model
  • Place of OriginChina
  • Power range0.65KW~0.75KW

Detailed product parameters

TEC Motor Drive Wheel Unit Series including  highly integrated product with electromagnetically integration including drive mechanism, position feedback, limit device and braking mechanism. It integrates walking, deceleration, traction and other functions, with high strength, abrasion resistance and good stability, which is very suitable for AGV application.

Product Features:

1. Compact space: Integrated design, small space

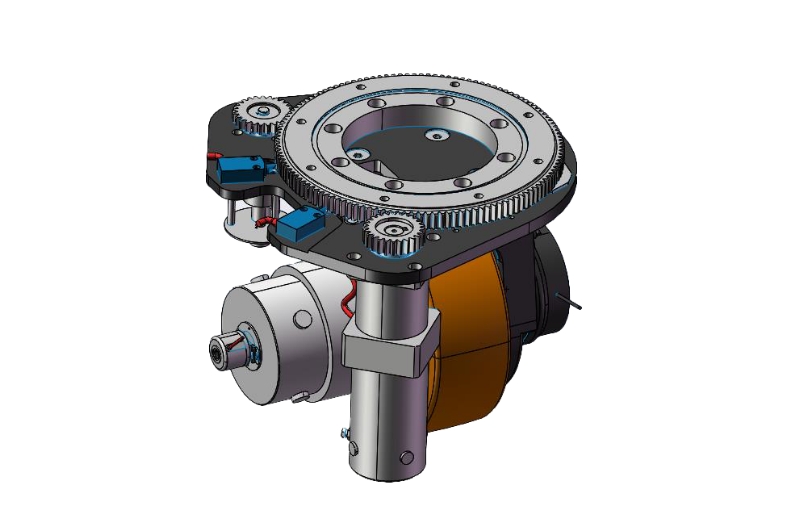

2. Various forms: horizontal/vertical/with steering/without steering

3. Various types of motor: DC brush/AC asynchronous/synchronous motor/servo motor

4. The wheels are optional with hard polyurethane (92HS), soft polyurethane (72HS) and rubber wheels

5. Different limit angles can be customized

6. Optional limit switch, different increment/absolute value encoder, origin switch, etc

7. Reducer: parallel axis/planetary axis

8. Vertical part models with shock absorption device

TEC-210 Traction motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-210  ​Rated voltage24/48V
Traction power650/750WRated current19/22/38/45A
Rated speed2650RpmRated torque2.34/2.7Nm
Reduction ratio24.69Output torque45/53Nm
Peak torque200/240Nm​Maximum load650/660Kg
TEC-210 Traction motor parameters

TEC-210 Steering motor parameters

Parameters NameParameters ValueParameters NameParameters Value
Series Name​TEC-210  ​Rated voltage​24/48V
Steering power​200/300WRated current8.3/11.9A
Rated speed3000/3200RpmRated torque0.6/0.96Nm
Reduction ratio50/58.22Output torque28.1/45Nm
TEC-210 Steering motor parameters
